          CV5200 module

          CV5200 module

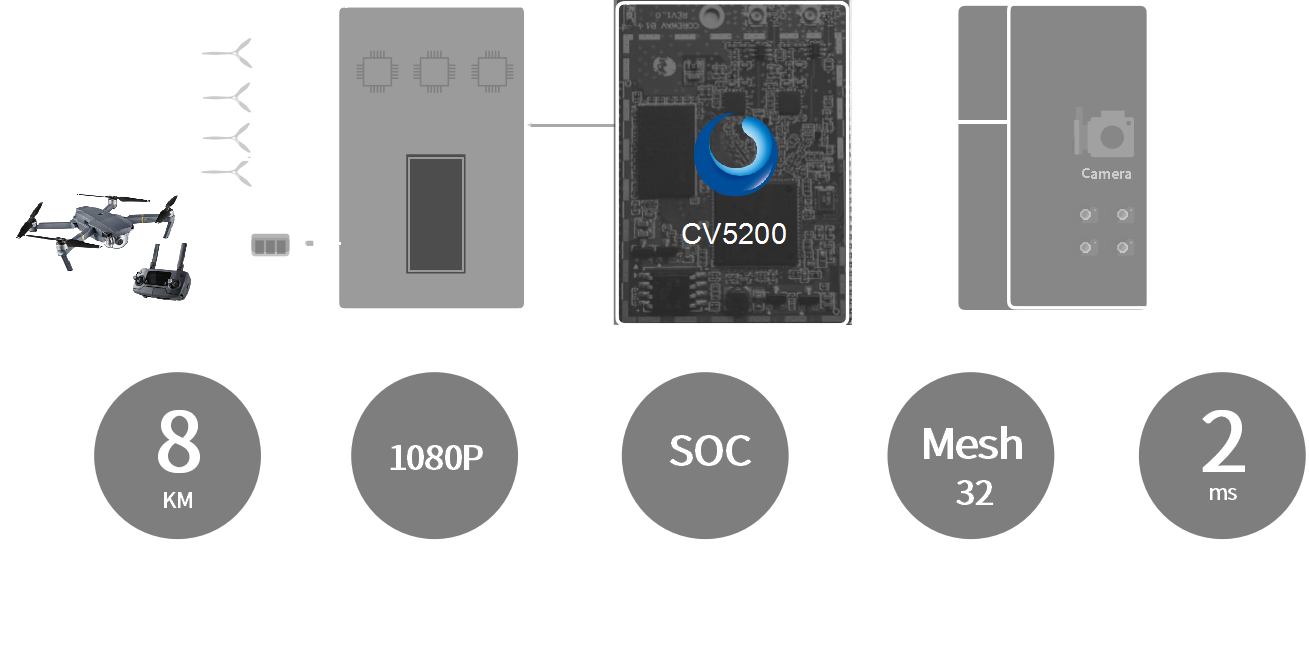

          The CV5200 module high-speed and long-distance wifi wireless module focuses on the Internet of Things technology. Its innovative LR-WiFi technology (Long Range WiFi) solves the problem of low-cost, high-performance, high-speed, and long-distance wireless communication. Reshape the boundaries of WiFi transmission.

          LR-WiFi: The main technology comes from WiFi, which not only has the characteristics of WiFi easy to use, mature, and can be networked, but also solves the missing problem in WiFi: distance.

          LR-WiFi has a hundred times that of LoRa, zigbee and other narrow-band communications and a slightly lower rate than WiFi. It can also be compatible with WiFi through an external wireless network card. It can be widely used in wireless cameras, drones, smart buildings, smart agriculture, and wisdom. Fields such as factories, robots, stage and musical instruments.

          Comparison of LR-WIFI and other wireless methods


          Comparison of LR-WIFI and other wireless methods

          parameter

          Traditional WiFi

          Bluetooth

          Zigbee

          LoRa WAN

          NB-IOT

          802.11ah (Halow)

          LR-WiFI

          transmission distance

          100m~400m

          15m~60m

          50m~300m

          300m~27Km

          <20Km

          <10Km

          ≤15Km

          transmission speed

          100~300Mbps

          1M/24Mbps

          250Kbps

          0.3~50Kbps

          20~127Kbps

          <10Mbps

          ≤40Mbps

          Operating frequency band

          2.4G /5GHz

          2.4GHz

          2.4G/Sub1GHz

          Sub 1GHz

          Licensed

          Sub 1GHz

          2.3/2.4GHz

          Node access capability

          32

          8

          6.5W

          6.5W

          About 20W

          8000

          32

          Network topology

          Star/Relays/Mesh

          Mesh

          Mesh

          Star

          Star

          Star

          Star/Mesh

          power waste

          higher

          Lower

          low

          Lower

          Lower

          Lower

          commonly

          Applicable scenario

          General family

          Office environment

          Proximity audio and control

          Smart home

          Low speed equipment

          Large scale low-speed networking

          Wide range low-speed direct network access

          Large range long-distance transmission

          Long distance high rate transmission

          Module introduction


          The main parameters

          parameter

          index

          working frequency

          2.4GHz(ISM)

          throughput

          Adaptive, ≤ 30mbps

          High transmitting power

          29dBm

          Measured transmission distance

          ≥ 8km (no ground to air interference, 2Mbps), noisy ground environment in typical cities, 400 ~ 500m

          working temperature

          -25~80℃

          power waste

          2~7W

          Receiving sensitivity

          Large - 101dbm

          delayed

          Typical value 2ms

          Package size

          45.9x33mm

          encryption

          WPA2 AES

          Network topology

          Point to point, point to multipoint, mesh

          Transmission technology

          OFDM TDD LR-WiFi

          diversity

          2x2MIMO,ML,MRC

          FEC

          LDPC

          Antenna interface

          IPEX x2

          Interface

          Ethernet X2, usbx1, low-speed uartx1 (supporting transparent transmission), gpiox12, pciex1
